CUSTOM CLAMP PRODUCTS

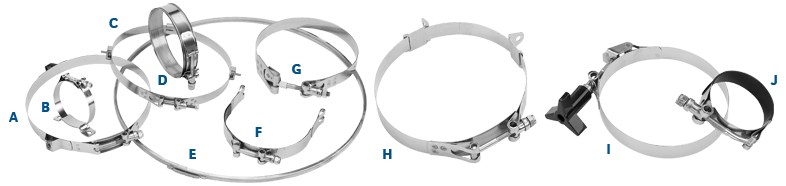

Clampco Customized T-Bolt Band Clamps A-J
We Customize Clamps to Meet Your Specific Needs

Clampco offers a wide variety of custom design features to suit your specific application. The clamps pictured on this page show just some of the available options.

Customized T-Bolt Band Clamps
  • A. Clamp with welded lugs to hold a heat shield around the clamp.
  • B. Clamp with sliding mounting bracket typically used for Performance Racing Fuel Pumps, Overflow Catch Cans and Fire Suppression Tanks.
  • C. Lug clamp for attaching clamp to other structures. Customers can specify any number of sliding lugs.
  • D. Clamp with rolled edge liner to prevent hose damage.
  • E. Saddle latch clamp with visible indicator on bolt to prevent over-tightening.
  • F. Clamp with sliding clips for attaching clamp to other structures. Customers may specify any number of clips.
  • G. Roll formed lighting ring clamp with simple spring closure. Lighting rings are used to hold lenses to light housings.
  • H. Strap assembly with rubber pads to protect the object being held in place.
  • I. Quick release clamp with long knob to prevent interference with clamp band. Knob allows operation of clamp without tools.
  • J. Clamp with heat shrink cover to protect the object being clamped.

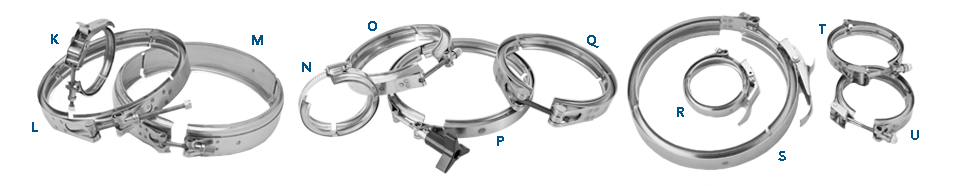

Clampco Customized V-Band Clamps K-U
Customized V-Band Clamps
  • K. V-Band Coupling with an over center latch handle and a safety clip to prevent accidental opening.
  • L. Extra wide V-Band Coupling for holding filter housings together. V-Band also has a special long nut to provide easier wrenching.
  • M. Heavy duty V-Band Coupling with a long, non-standard, fabricated T-Bolt.
  • N. Worm Gear V-Band Coupling that offers an economical solution for joining plastic valves and couplings.
  • O. V-Band Coupling with spherical v-retainers for improved exhaust leak rate due to radial pipe misalignment.
  • P. V-Band Coupling with long knob allowing for hand tightened installation typically used for small residential water filters.
  • Q. V-Band Coupling with quick release barrel/socket head cap screw hardware that offers quick assembly without dealing with a deep socket installation.
  • R. V-Band Coupling with a light-duty over center latch handle. The handle can be secured with a safety pin, which passes through the hole in the yoke.
  • S. V-Band Coupling with a medium-duty over center latch handle and a safety clip to prevent accidental opening of the clamp.
  • T. Hinged V-Band Coupling offers excellent installation flexibility.
  • U. V-Band Coupling with quick release latch provides quick and easy access to joints.
Custom Clamp Considerations

Any portion or feature of a clamp can be modified, depending on:

  • Weight limitations
  • The need for corrosion resistance
  • Type of environment
  • Size of hose, vessel or flanges
  • Temperature exposure
  • Space limitations
  • Product intended use
  • Aesthetic requirements
  • Application pressure
  • Serviceability requirements
Over-center handles
are not to be used
for pressurized
V-Band applications



Our vast experience and CAD abilities allow us to provide the best "engineered joining solutions" for our customers. When you need customized stainless-steel clamps or other specialized joining solutions, make Clampco your first choice. Contact us now to begin the process.
